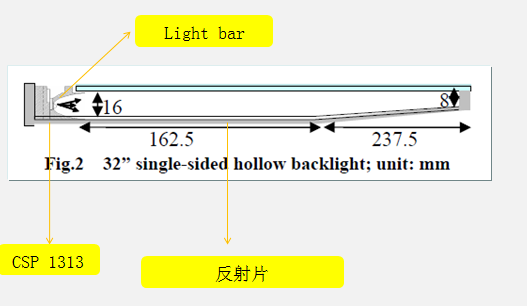

Solution ：1313 or 1010 light source with special design lens, the LED lamp will be placed on the side of the LED backlight module to achieve OD 20-OD40, the specific implementation as shown in figure, this technology for the new design concept of TV backlight.
Technical : Asymmetric light
Application: LED TV BLU

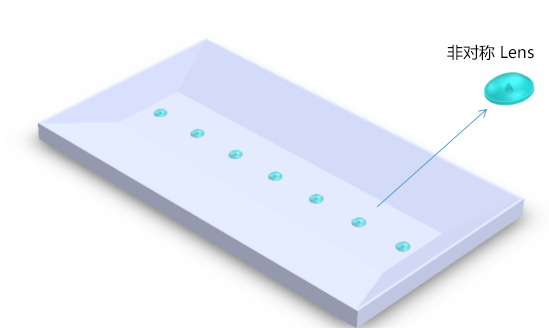

Solution ：This technology for the use of asymmetric optical design lens with 1313 or 1010 LED light source to achieve 32 inch 1 bar, 39-43 inch 2 bar design, 47-55 inch 3bar design.
32inch 1 bar design details refer to the schematic diagram:
